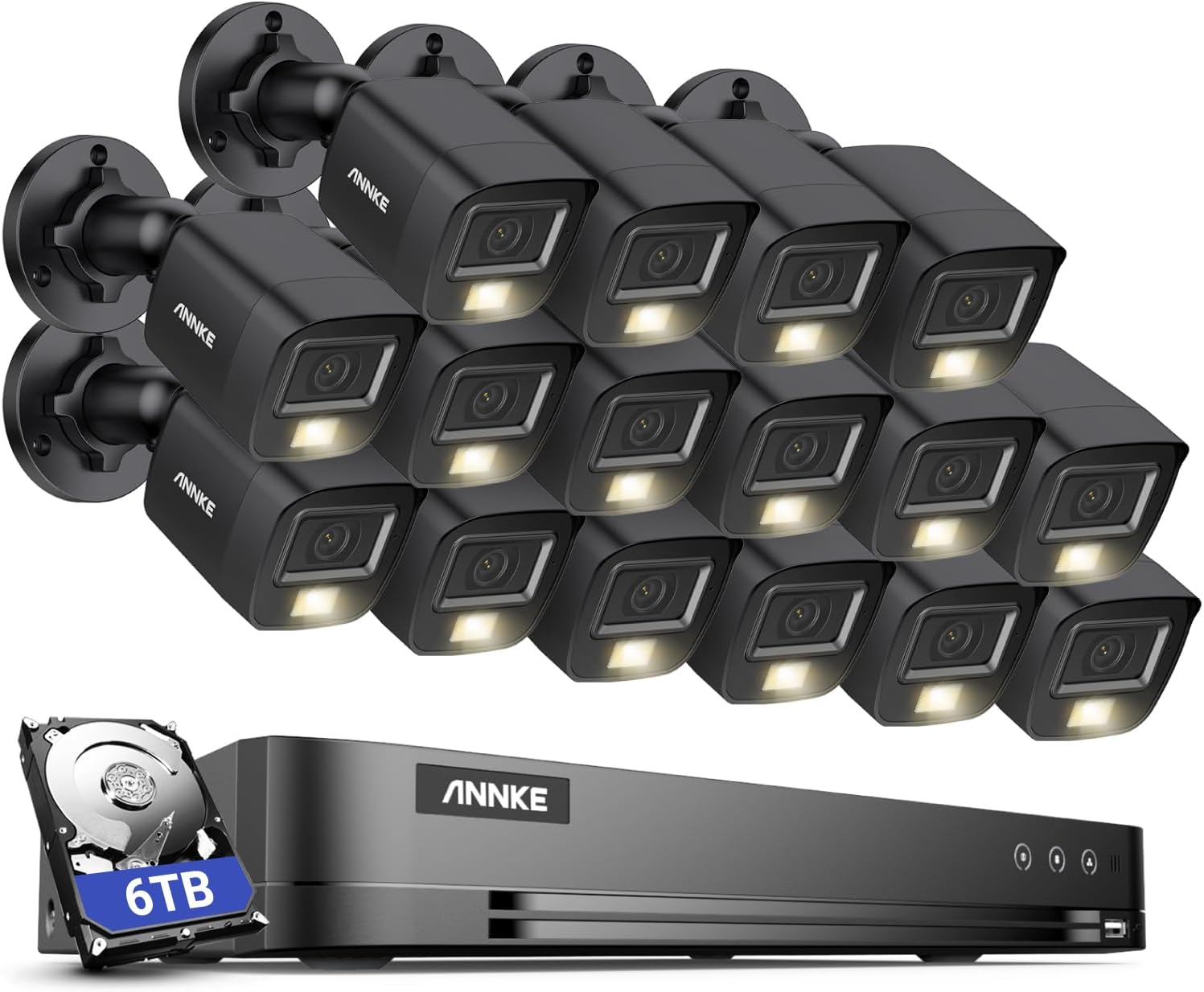

ANNKE 16CH Wired Security Camera System with Mic/Audio, 8MP H.265+ 16 Channel DVR with AI Human/Vehicle Detection, 16x IP67 CCTV 3K Cam with Dual Color Night Vision, Compatible with Alexa, 6TB HDD

DVR Description:

· 4K(8MP) high definition live viewing, recording & playback
· 16CH Analog and 16 CH IP camera input simultaneously
· Deep learning-based motion detection 2.0 for all analog channels
· Deep learning-based perimeter protection
· Up to 32-ch IP camera inputs (up to 8 MP)

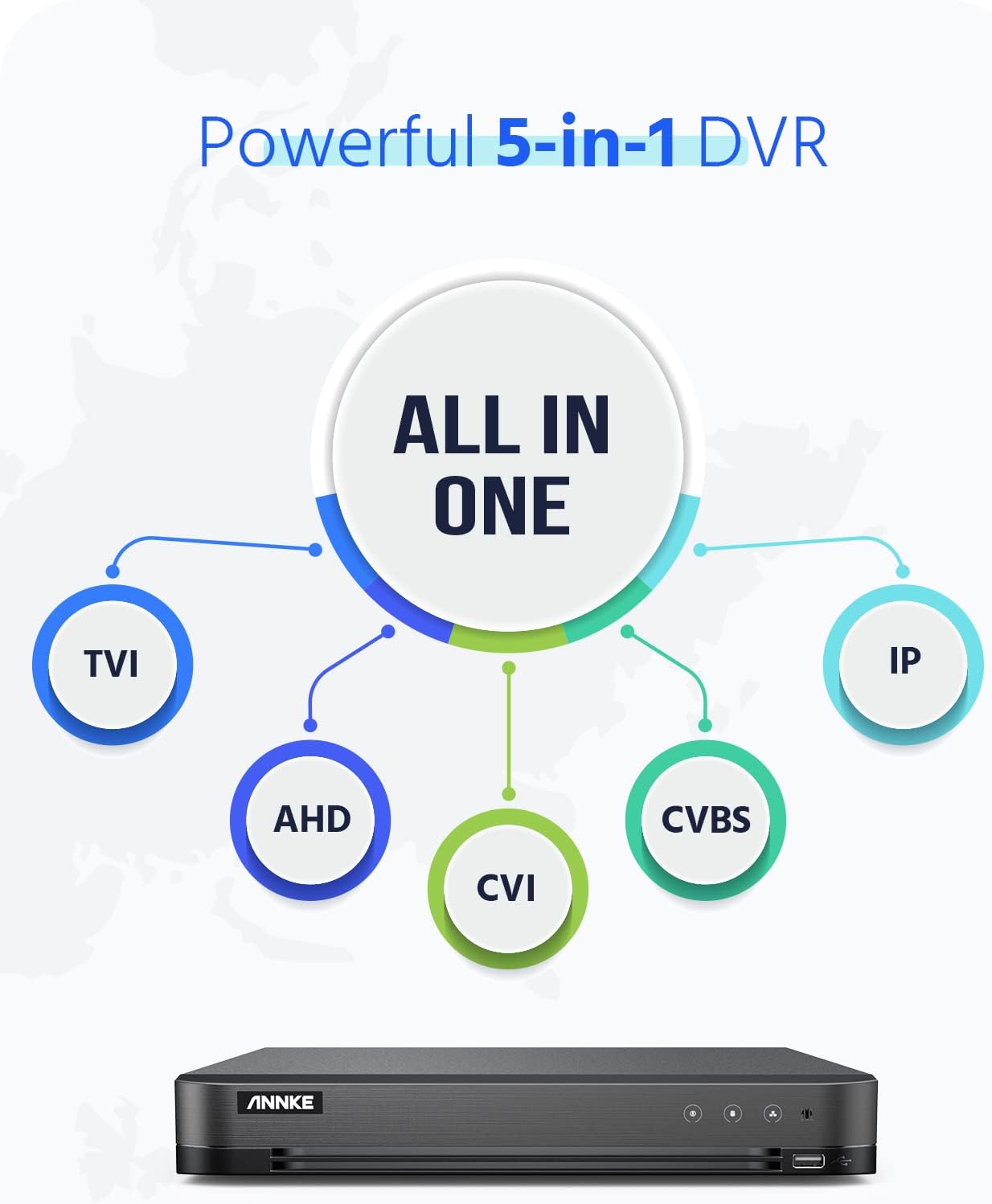

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Up to 10 TB capacity per HDD

Video Compression: H.264+/H.264/H.265/H.265+
Audio Input/Output: 1/1 RCA
Supported Analog Camera Types: 'Support HD TVI Input: 8MP, 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps;
Support AHD Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps;
Support CVI Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps;
Support CVBS Input'
Analog HD Playback Resolution: '4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps 1080p
IP Camera Input: 16CH(up to 32-ch)
HDD Capacity: Up to 10 TB Capacity

Camera Description:

High quality imaging with 3K, 2960 × 1665 resolution
2.8 mm fixed focal lens@F1.2
High quality audio with audio over coaxial cable, built-in mic
Up to 25 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS）
Water and dust resistant (IP67)

Image sensor: 3K CMOS Image sensor
Video Resolution: 2960 (H) × 1665 (V) (16:9)
Frame Rate: 'TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC'
Lens: 2.8mm
Angle of View: Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
Supplement Light Range: IR : Up to 25 m, white Light : Up to 20 m
Supplement Light Mode: IR light works normally, and it switches to white light when human or vehicle are detected at night.
Audio: Built-in mic
Color: Black

Additional details

• Color : Black
• Item Dimensions : 19.5 x 8 x 14 inches

Features & Specs

• Connectivity Technology : Wired
• Memory Storage Capacity : 6 TB
• Night Vision Range : 82 Feet
• Number of Channels : 16
• Other Special Features of the Product : Waterproof
• Power Source : DC
• Video Capture Resolution : 3K

Item details

• ASIN : B0CM974WTX
• Brand : ANNKE

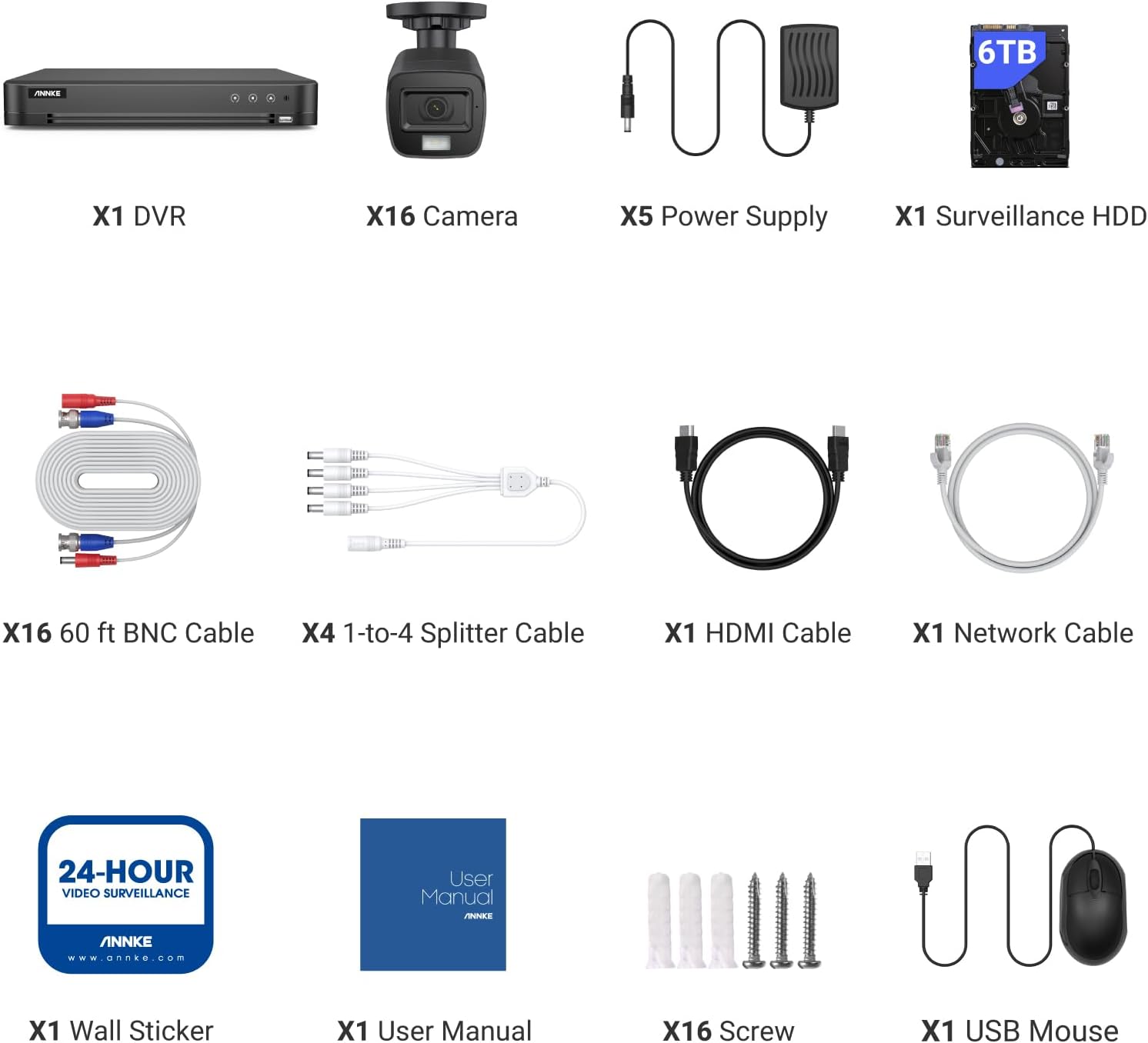

• Built-In Media : 16x 3K CCTV Cameras&BNC Cables&Screw Kits, 1x 16CH 4K DVR, 6TB HDD Included, 1x Ethernet Cable&HDMI Cable, 1x USB Mouse&User Manual&Wall Sticker, 5x Power Adapters&4x 1-to-4 Splitter Cables
• Manufacturer : ANNKE
• Model Number : D961BB6-V2-RGCX
